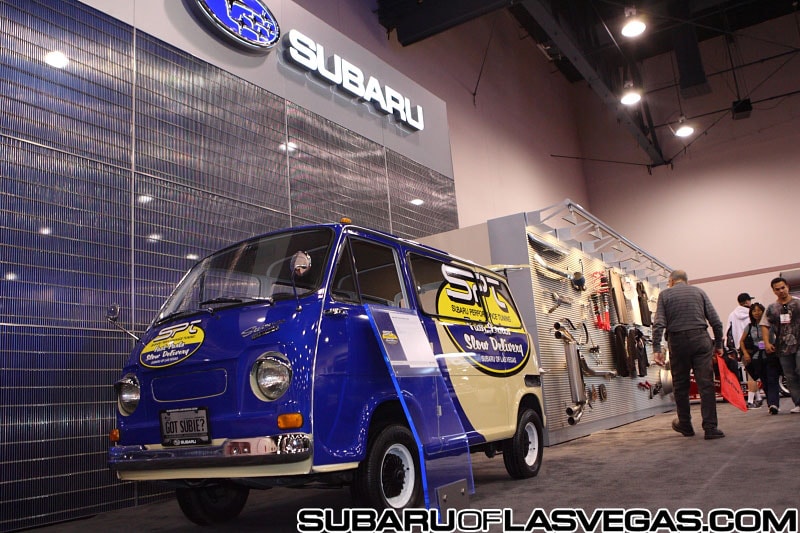

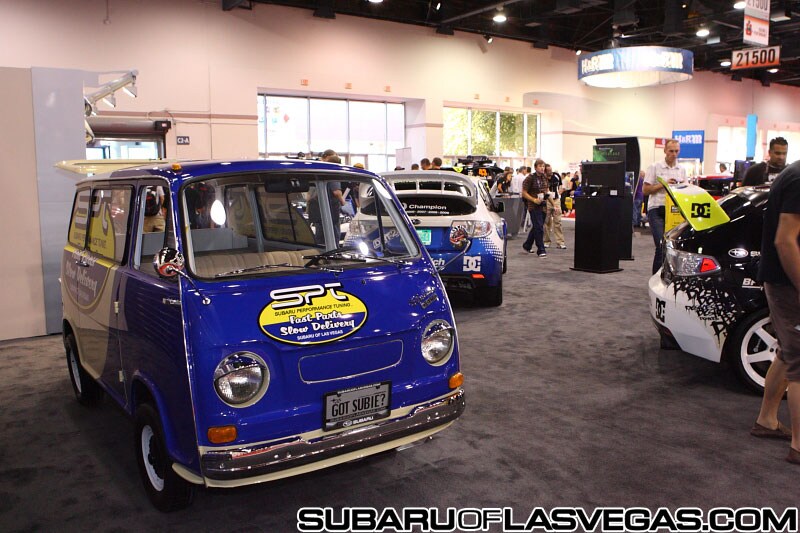

1969 SUBARU 360 VAN SUBARU OF LAS VEGAS SEMA PROJECT
SPT PARTS DELIVERY VAN "FAST PARTS, SLOW DELIVERY"

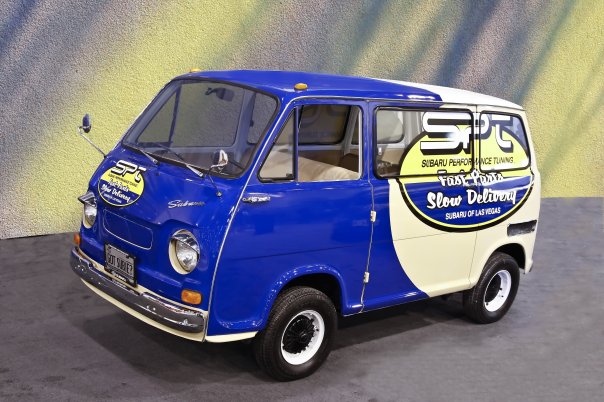

1969 SUBARU 360 SPT Parts Delivery Van Spec
- Engine: 356 cc, 2-cylinder, 2-stroke, air-cooled
- Horsepower/torque: 25 @ 5,500 RPM / 25.3 lb.-ft. @ 4,500 RPM
- Length: 117.9 inches
- Width: 51.0 inches
- Height: 53.0 inches
- Curb weight: approx. 950 lbs.
- Fuel economy: 66 miles per gallon
- Smile factor: priceless
Media Links (media inquiry - contact Yujiro Otsuki)
SUBARU OF AMERICA Press Release
"Subaru Concepts Push the Limits of the Fast, the Low and the (Very) Slow for 2009 SEMA Show"
http://media.subaru.com/index.php?s=43&item=118
CAR AND DRIVER "2009 SEMA Show: 10 of Our Favorites - Feature"
http://www.caranddriver.com/news/car/09q4/2009_sema_show_10_of_our_favorites-feature
AUTOBLOG
"SEMA Preview: Subaru bringing tuned STI, Legacy and 1969 360 van"
http://www.autoblog.com/2009/10/30/sema-preview-subaru-bringing-tuned-sti-legacy-and-1969-360-van/
JELOPNIK "The Coolest, Slowest Vehicle At SEMA"
http://jalopnik.com/5398070/the-coolest-slowest-vehicle-at-sema
edmunds INSIDE LINE
http://www.insideline.com/subaru/impreza-wrx-sti/subaru-silly-and-serious-for-2009-sema-auto-show.html
Japanese Nostalgic Car Magazine
http://japanesenostalgiccar.com/blog/2009/11/03/sema-2009-nostalgics-from-subaru-and-honda/
CNET
http://reviews.cnet.com/2300-10863_7-10001813-17.html?s=0&o=10001813
Response.jp (JAPAN)
http://response.jp/article/2009/10/31/131814.html
Car Sensor Magazine (JAPAN)
http://publish.carsensorlab.net/editor/_12279.html
A FEW GOOD MEN WHO LOVED OUR LITTLE BEAST
Mr. 199 TRAVIS PASTRANA
KEN BLOCK
DAVE MIRRA
TARZAN YAMADA
1969 SUBARU 360 SUBARU OF LV / SPT Parts Delivery Van
Detailed Spec
Dimensions:
Length - 117.9in
Width - 51 in
Height - 60.4 in
Wheel Base - 68.9 in
Tread Front - 44.1in
Tread Rear - 42.5 in
Ground Clearance - 7.3in
Vehicle Weight - 1,210 lbs
Seating Capacity - 2 or 4 adults
Maximum Payload - 660 lbs / 2persons
Performance:
Max Speed - 59 mph
Climbing Ability Sin0 - 0.229
Min Turning Circle - 26.2ft
Braking Distance - 45.9ft at 31 mph
Engine:
Model - EK32
Type - Forced air-cooled, 2 Cylinder, 2 Stroke Engine
Bore x Stroke - 2.42 in x 2.36 in
Piston Displacement - 21.7 cu./in
Compression Ratio - 6.7 : 1
Maximum Output - 25ps / 5,500rpm
Maximum Torque - 25.3lb.-ft./4,500rpm
Fuel&Oil Tank Capacity:
Fuel Tank - 8.0 Gal.
Oil Tank - 2.6 qt
Clutch:
Dry - Single Plate Type
Electrical Equipment:
Battery - 12V-26AH
Generator - 12V-200W
Starter - 12V-600W
Transmission:
Number of Speeds- 4-Forward / 1 Reverse
Transmission Type- Synchromeshed on 2nd, 3rd & Over Top Speed. Selective Sliding on Reverse
Gear Ratio-
1st: 3,130
2nd: 1,601
3rd: 1,000
Over Top: 0.806
Rev.: 0.248
Final Reduction Gear: Helical Gear
Final Reduction Gear Ratio: 3.882
Steering System:
Type - Rack & Pinion
Gear Ratio - 22.5
Tires:
Size - 4.50/10/4PR
Suspension:
Front Axle- Trailing Arm Type Independent Suspension
Rear Axle- Swing Axle Type Independent Suspension
Front Spring- Torsion Bar & Oil Damper
Rear Spring- Torsion Bar & Oil Damper
Brake System:
Front Brake - Hydraulic Two Leading Type
Rear Brake - Hydraulic Leading Trailing Type
Parking Brake - Mechanical on Rear Wheels
Body:
Ladder-Type Frame, Cab-Over Type
Standard Equipment:
Four Speed Transmission
Heater and Defroster
Dual Electric Wipers
Back-Lights
Directional Signals
Courtesy Light
12 Volt Electrical System
Window Washers
Adjustable Louvre Vents
Chrome Wheel Covers
Mud Flaps
Padded Sun Visor
Front Cowl Air Vent
Vinyl Upholstery
5 Doors
Fold Down Rear Seat
4 Wheel Independent Suspension
